All products adhere to the SABS 154 specification

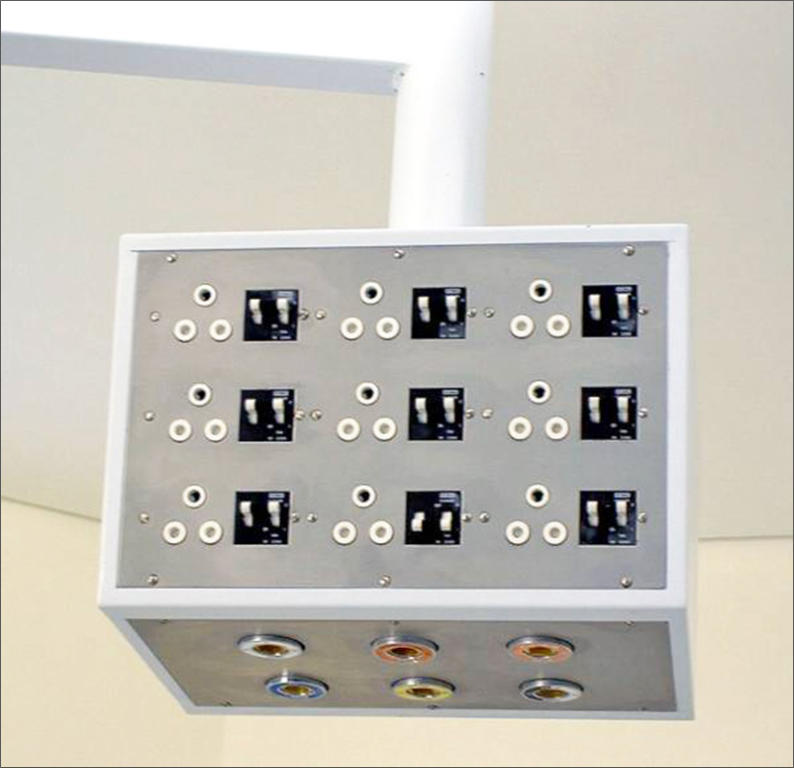

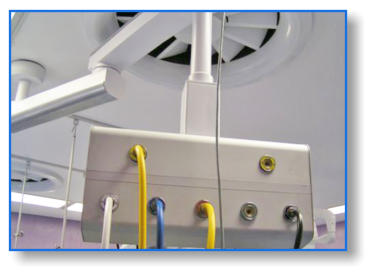

A ceiling mounted pendant which provides a disciplined method of directing gas and electrical supplies to the operating area
Mounting: Brackets are available for fixing by others, standard Gas and electrical outlets: Number and type to be specified. Service feeds by others Pendant length. To be specified. Height from final floor level to underside of pendant normally 1.9 m Red indicator light: Optional Medical Rail Adjustable cowl and body: Sheet steel This pendant can either be powder coated or stainless steel. The gases are fitted underneath and between 3 – 10 gases can be installed. The pendant can be fitted with between 2 x16A MCB – 12 x 16A MCB. The height depends on the floor to ceiling measurement. Optional extras are monitor trays, gabler rail, nurse call, emergency button.
